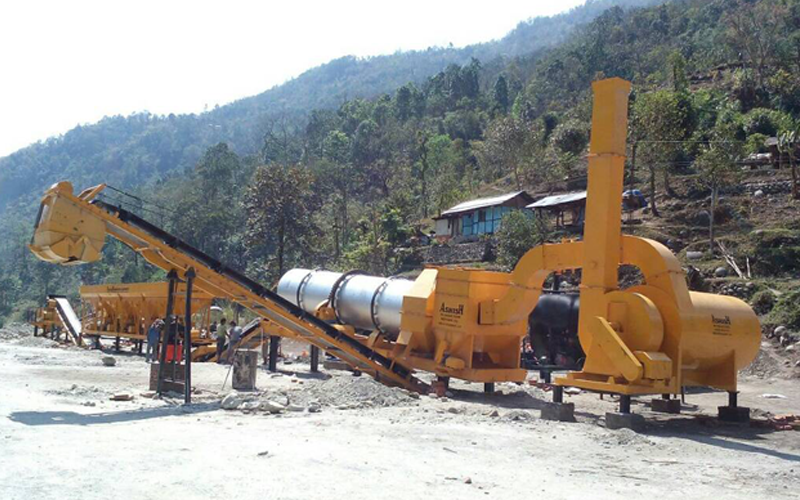

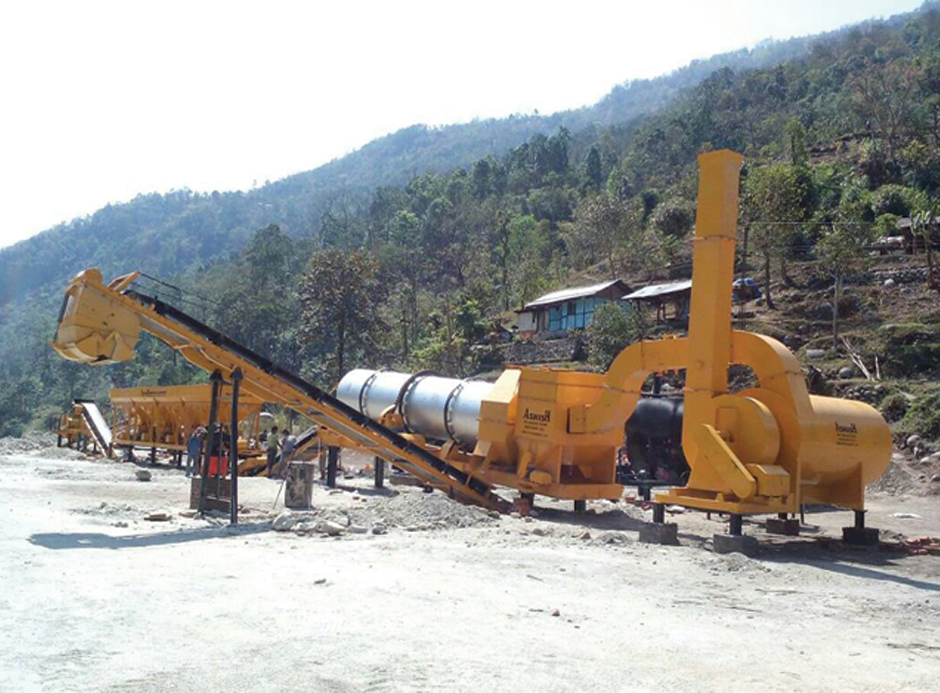

ASHISH offers stationary asphalt plant for sale in the capacities 40 tph to 120 tph. These plants are ideal for those contractors who want to go for high volumes of asphalt production without frequently shifting from one place to another. We offer full package to road contractors for complete peace of mind and we want them to concentrate on their core business without worrying about the equipment.
The main components of the offered asphalt drum-mix plants are cold feed bins, drying and mixing drum, bitumen storage tanks, pollution control units and control panel. We offer top quality components to our customers with a proven and trusted design which will give maximum up time of the machine. panel is ideal and has edge over the traditional microprocessor based panel board offering the asphalt plant operator easy usability and low maintenance. Storage silos can also be offered to store the hot mix material.
We have more than 25 years of manufacturing experience and a product which is backed by professional service and cheaper spares so that you cherish and use your equipment for years to come.
Our standard package includes helping the customer in erection and commissioning the plant and giving trial run to the customer before they use the asphalt mixing plant.
With years of experience in asphalt mixing, and an installed base of over 1800 plants, Ashish has mastered the continuous asphalt mixing technology. The world over, DrumMix plants from Ashish have produced millions of tons of quality asphalt. Ashish plants are known for quality of mix, lower operating costs, productivity, efficiency and high uptime
With years of experience in asphalt mixing, and an installed base of over 1800 plants, Ashish has mastered the continuous asphalt mixing technology. The world over, DrumMix plants from Ashish have produced millions of tons of quality asphalt. Ashish plants are known for quality of mix, lower operating costs, productivity, efficiency and high uptime
With years of experience in asphalt mixing, and an installed base of over 1800 plants, Ashish has mastered the continuous asphalt mixing technology. The world over, DrumMix plants from Ashish have produced millions of tons of quality asphalt. Ashish plants are known for quality of mix, lower operating costs, productivity, efficiency and high uptime
A hot mix plant is a combination of several components both electrical and mechanical working in sync to make a product which we call as HMA (Hot mix asphalt). The combination of these components allow cold aggregates to heat and then mix the same with liquid bitumen and minerals in varying proportions to produce asphalt mix as per requirements.
These plants can be categorized as stationary and portable. Usually the stationary plant components are fixed and portable plant components are on wheels facilitating movement from place to place.
Hot mix asphalt plants can also be categorized as continuous type and batch type. Continuous plants produce asphalt mixture in continuous operation and batch type plants produce HMA in batch.
Modular asphalt mix plant from leading Indian manufacturer of batch type asphalt plants. Store, edit unlimited recipes on PLC panel. Cost effective machine with low running cost and lowest cost of spare parts.
Capacities above 160 tph are tailor made
ASHISH offers asphalt batching plant for sale. We have developed this equipment to help contractors produce hot mix asphalt using discontinuous process with the help of accurate weighing technology coupled with fast, low maintenance and reliable mixer.
Cold feed bins are with variable speed drive motors for each bin allowing to control individual material as required. Primary vibrating screen is single deck for oversize material removal before the aggregates enter the drying drum.

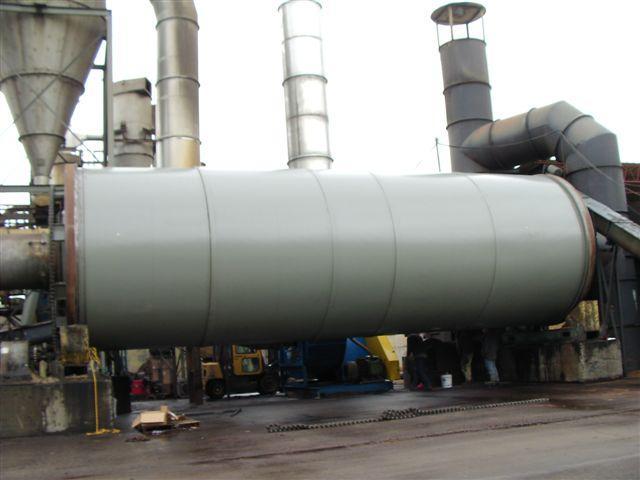

Drying drum of asphalt batch plant is designed with flight design that help in lifting the aggregates so that they get heated evenly before they exit the drum. Drying of aggregates takes place in the drying drum making the process fuel efficient. Even raw materials with high moisture content get dried easily. Insulated drying drum helps to retain heat and save energy.

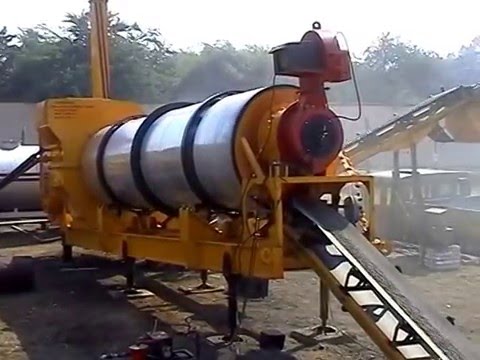

Modulating burner is designed for low fuel consumption, low noise and easy maintenance. The burner is capable of running on diesel or LDO (Optional: FO).
Burner size and drum rotation speed is coupled with efficient flights. This allows maximum output of the burner while simultaneously reducing the fuel consumption.

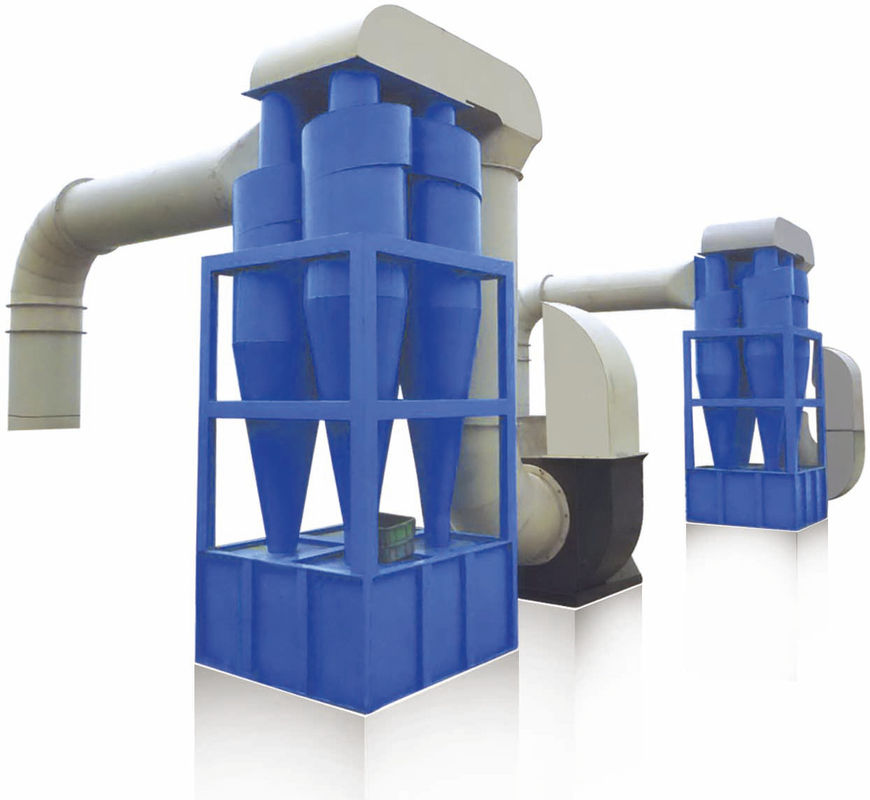

Correct sized dust collector is the key to the success of the asphalt mixer. The plant is supplied with cyclone type dry dust collector.
Dust laden gas passes through the dry dust collector where they are cyclonically treated to settle the heavier dust. Excess dust from the vibrating screen and hot bins are also sucked by the dry dust collector.
Fully insulated tanks available in various capacities. Asphalt tanks are with direct or indirect heating and With hot oil jacketed piping.
Bitumen is weighed in a weigh hopper which is suspended on 3 load cells.
The software of micro process base controls panel control panel is developed in house. It is keeping in mind that the operation of asphalt hot mix plant has to be easy.
Control panel is designed for easy maintenance.
Technical Specifications of DrumMix 60 - 120 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
* Options available |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
