WET MIX PLANT
STRUCTURE OF WET- MIX PLANT

STRUCTURE OF WET- MIX PLANT

ASHISH is exporter of Wet mix macadam plant and also heavy civil equipment manufacturers company in India. Soil stabilization machine is also available with cement addition. Buy quality road constructio machines from Gujarat

Model WM 100 WM 200 WM 300
Capacity 100 tph 200 tph 300 tph

ASHISH CONSTRUCTION EQUIPMENTS is known as one of the quality wet mix plant manufacturer from India.
Our plants come in the production capacities of with full guarantee for the performance and output. Equipment manufactured by us is known for their productivity and quality designed for smooth and trouble free operation.

Advantages of ASHISH WMM plant are as under:

  • The shaft of the pug mill mixing unit rests of 6 pedestals. This makes the torque absorption better and ensures maintenance free performance.
  • The shaft is 5" and is bigger for longer life.
  • Shafting is un slotted fitted with arms and tips with distant pieces in between. This ensures that the shaft life is more as the material does not directly come in contact with the shaft.
  • Arms and tips are opposite and not alternate for homogeneous mixing.
  • Liner plates, arms and tips are easy replaceable.
  • Storage silo of various capacities can be provided.
  • Integration of cement silo to add cement in the mixing unit is also possible.

These plants are manufactured under strict vigilance. We also ensure trouble free operation of plant by using the best of the materials in the manufacturing process. Our experience of more than 30 years help us to produce equipment of highest standards by using the best of the raw materials. These wet mix plants have performed under rough conditions and have proved their worth.

Our standard wet mix macadam plant comes with a strong pug mill mixer unit that helps in proper and uniform mixing. Storage SILO of suitable capacity is also provided so that you don't have to stop the plants while waiting for trucks. The mixing unit is the most important unit and is designed to perform under tough operation conditions.

A lot of our customers have found satisfaction with our plants which have yielded results and performed with accuracy over the years. The design is extremely user friendly and that the operator can use the plant with ease. We understand our responsibility as a responsible manufacturer and our ISO Certified process enables us to strictly adhere to standards.

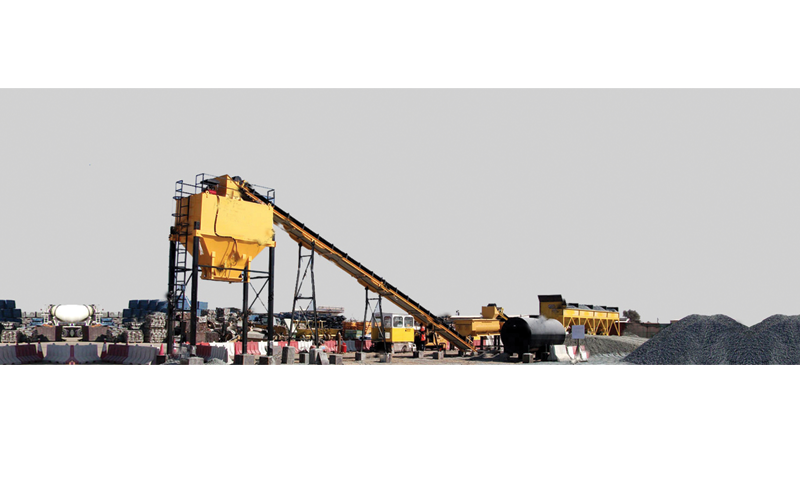

WET- MIX PLANT - WMM-100 TPH

WMM-100 TPH

  • All the Four bins are fitted with individual AC motors and gear box to control and regulate the flow of aggregate from each bin Gathering conveyor is equipped with scrapper and driven by AC motor. Aggregate from the gathering is feed to the pug mill unit through a slinger conveyor after removing oversize material.

  • The storage silo can be offered in the required capacity, as per customer requirement.

  • Silohopper with hydraulically operated camshell type facilitate quick discharge of mix material without segregation.

  • Twin shaft design for continous and homogenous mixing of aggregates and additives.

  • Extra heavy duty anti friction bearing for smooth function.

  • Wear resistant alloy steel for paddle arms and tips for longer life.

  • Approximate area required for installation of the plant is 35m x 35m.

WET- MIX PLANT WMM-200 TPH

WMM-200 TPH

  • All the Four bins are fitted with individual AC motors and gear box to control and regulate the flow of aggregate from each bin Gathering conveyor is equipped with scrapper and driven by AC motor. Aggregate from the gathering is feed to the pug mill unit through a slinger conveyor after removing oversize material

  • The storage silo can be offered in the required capacity, as per customer requirement.

  • Silohopper with hydraulically operated camshell type facilitate quick discharge of mix material without segregation.

  • Twin shaft design for continous and homogenous mixing of aggregates and additives.

  • Extra heavy duty anti friction bearing for smooth function.

  • Wear resistant alloy steel for paddle arms and tips for longer life.

  • Approximate area required for installation of the plant is 35m x 35m.
WET- MIX PLANT WMM-300 TPH

WMM-300 TPH

With years of experience in asphalt mixing, and an installed base of over 2400 plants, Apollo has mastered the continuous asphalt mixing technology. The world over, DrumMix plants from Apollo have produced millions of tons of quality asphalt. Apollo plants are known for quality of mix, lower operating costs, productivity, efficiency and high uptime

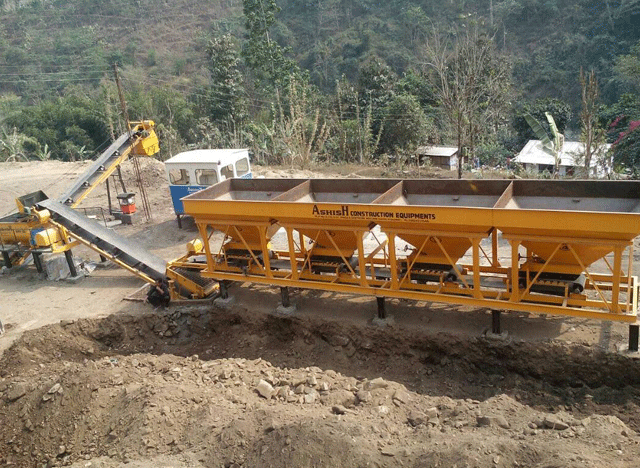

Four bin feeder

Four bin feeder

All the four bins are fitted with individual AC/ DC motors and appropriate gear boxes to control and regulate the flow of aggregate from each bin. Gathering conveyor is equipped with scrapper and driven by AC motor. Aggregate from the gathering is feed to the drum with a slinger conveyor after removing oversize material.

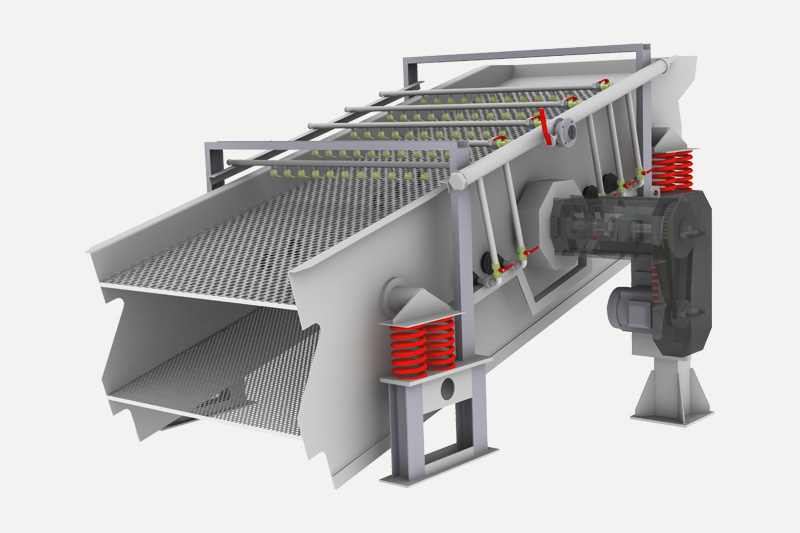

Vibrating screen

Vibrating screen

In the soil cement stabilization plants supplied by ASHISH, a rugged single deck vibratory screen is placed at the end of cold aggregate feeder. Its job: To remove oversized aggregate material.

Conveyor belt

Conveyor belt

Driven by an variable speed drive motor, aggregates are transferred to pug mill type unit. The conveyor belt is equipped with weigh bridge (Load Cell) for continuous monitoring of weight (tons/hour). Its job: To weigh aggregate and transfer it to the PUG MILL

Pug mill unit

Pug mill unit

Mounted on a sturdy chassis, the dual shaft PUG MILL mixing unit consists of hardened material liners-heavy duty square bar with wear resistant paddle arms and tips. It gives a homogenous mix.

Water tank

Water tank

Water Storage tank is fitted with best quality standard pump and meter with standard pipe to transfer exact quantity of water to the PUG MILL

Control panel

Control panel

Fully computerized cabin with on board electric power console, distribution, switch board, fully automatic process are a standard on ASHISH WMM plant. A software which is very user friendly ensures top notch performance. Display of the entire process control parameters. Provision to store, edit production details, mix proportions, etc. Auto/ manual proportion.

Control cabin

Control cabin

Cabin is fabricated with M. S. Structured frame and insulated by wood. Strategic location of seat ensures complete view of the plant.

Load out conveyor with silo type hopper

Load out conveyor with silo type hopper

Aggregate discharged from pug mill is collected into silo type hopper. With 100 tph and 160 tph plants, a silo type hopper is supplied. A 2 Tons wet mix material storage hopper is supplied with 100 tph wet mix plant and a 10 T capacity hopper is supplied for wet mix material storage.

Wet mix storage silo

Wet mix storage silo

ASHISH offers complete solution for storage of material in the soil stabilization plant. The silo is rigid yet easy to erect and transfer. The timing of clamshell gates is maintained in such a way that it facilitated quick discharge of materials without segregation. Silos open with hydraulically operated gates.
